VESUVIO inverter heat pump R32 7kW / 9,2kW REF : VESIN10NR

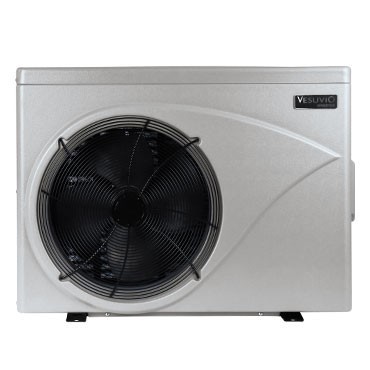

Vesuvio full inverter heat pump

Vesuvio full inverter heat pump

  • CF-Group-product.png
  • 3-year-warranty.png
Vitalia Comfort
  • Recommended pool volume zone A (m³) : 30(1) - 50(1b).
  • Recommended pool volume zone B (m³) : 25(1) - 40(1b).
  • Operating range water ( °C) : +5 °C to +35 °C.
  • Operating range air ( °C) : -5 °C to +43 °C.
  • Heating capacity (kW) (air 26°. water 26 °C. : 9.5(2)
  • C.O.P (air 26 °C. water 26 °C. hygro. 70 %) : 5.7(2) - 9.5(3)
  • Heating capacity (kW) : 7(2)
  • C.O.P (NF-414 : air 15 °C. water 26 °C. hygro. 70 %)
  • Cooling capacity (kW) (air 35 °C. water 26 °C : 3.8.
  • Recommended flow rate (m³/h) : 3-4.
  • Rated power (lW) at 15/26/70 % : 1.6(2) - 0.35(3).
  • Power supply : 220/240 V - 1 Ph/50 Hz.
  • Rated current (A) : 7.0 (2) - 1.52 (3).
  • Gas : R32.
  • Compressor : Inverter. 1 Hz step.
  • Expansion / 4-way valve : Electronic EEV HP BOOSTER / Saginomiya
  • Sound pressure dB(A) at 10 m : 20.6 (3) - 32.5 (2).
  • Hydraulic diameter (mm) : 50.
  • Overall collar dimensions (mm) : 872 x 349 x 654
  • Net weight (kg) : 47.
Need advice?
09 70 72 5000
From monday to friday 08:30 am -12:30 am & 1:30 pm-5:30 pm See the peak times

Product Bonuses

  • R32 refrigerant: 60 % less greenhouse gas and zero impact on the ozone layer.
  • Works above an air temperature of -5 °C.
  • “Full-Inverter” compressor, frequency variable in 1 Hz increments.
  • Acoustic pressure at 10 m of up to 20 dB(A).
  • Integrated soft start.

Technical specifications

  • Complete range for pools of up to 170 m³.
  • COP of up to 14.6 in Air 26°C/Water 26°C/Humidity 80 % conditions.
  • Acoustic pressure at 10 m of up to 20 dB(A) (VESIN08NR model).
  • Integrated soft start to avoid overloading electrical installations when starting up machines.
  • The water can be heated (warm mode) or cooled (cool mode).
  • 2 run modes: "Smart" for standard use and "Silence" (or night mode) for 80 % of maximum performance and a 3 dB(A) reduction compared with the Smart mode.
  • Defrosting by hot gas by automatic cycle inversion.
  • EEV electronic expansion.
  • Gas used: R32.

Documents to download

More documents

Tips

A heat balance is essential to determine the best suited model to the configurations of the pool.
