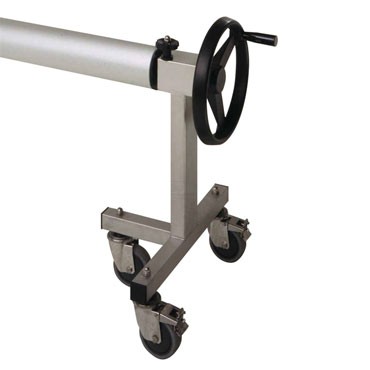

Delinox reel syst. wide model tripod wheels L8.5 REF : W-ENPT03101

Reel system Delinox long length 3 supports

Reel system Delinox long length 3 supports

  • cf-group-products.png
  • made-in-france.png
  • 3-year-warranty.png
DEL
  • Use : Individual
  • Maximum pool length (m) : 20.00
  • Maximum pool width (m) : 8.00
  • Version : Manual
See all the spare parts
Need advice?
09 70 72 5000
From monday to friday 08:00 am- 6:00 pm See the peak times

Product Bonuses

  • Anodised aluminium tube.
  • Ideal for rolling foam covers.
  • Better control when unrolling the cover using the strap brake system.
  • Rolling is easy thanks to the bearing block ball bearings.

Technical specifications

TYPE OF POOL

  • For pools up to 8.00 x 20.00 m.

TYPE OF COVER

  • For all bubble and foam covers.
  • Reel system delivered pre-fitted with elastic straps or straps (long lenght Delinox).

    • END CAPS

    • Polyamide end caps.
    • Ø 20 mm stainless steel shaft.

    TUBE

    • Delinox large pools: anodised aluminium telescopic tube, Ø 130 mm, thickness 4 mm, smooth.

    END-STANDS

    • Passivated grade 304 L stainless steel.
    • Vertical upright: 80 x 40 mm, thickness 1.50 mm.
    • Horizontal upright: 40 x 40 mm, thickness 1.50 mm.
    • 2 stainless steel ball bearings.

    BRAKE

    • Strap braking system ensuring the slowing or blockage of the shaft.

    TYRES

    • Inflatable tyre with inner tube (delivered un-inflated).

    WHEEL

    • Ø 300 mm wheel with swivelling handle.
