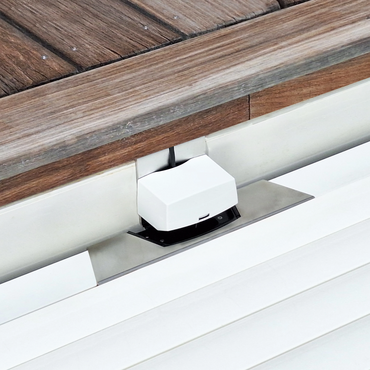

Pushlock Automatic

CHARACTERISTICS

• Color cover made of ABS and suspended stainless steel 316L mounting bracket.
• Available with a fixed mounting offering 8 installation positions.
• Available in 4 colors: white, light gray, anthracite gray, and black.
• Wall kits equipped with a 2 m cable and supplied with a compact IP68 electrical connector.
• Wall kits installed only on the side opposite the roller.

PRE-REQUISITES

• The water level must be controlled (maximum variation range: 4.50 cm) to ensure the proper functioning of the devices. (+ catalog image)
• Each device must be electrically connected to the control box, which itself must be connected to the electrical box of the shutter.
• The wall-mounted devices must be installed precisely according to our recommendations (indicated on the detailed plan provided upon delivery of the cover, or according to those mentioned in the technical manual when installed upstream of your full shutter order).
• The pool must have a level allowing the attachment of the support bracket.
• The activation of the automatic switch is mandatory.

COMPATIBILITY

Slatted covers:

• Rollenergy Evolution
• Rollin
• Rollover
• Rollinside - grating placed between 8 and 13 cm under water
• All sllated cover ranges sold by CF group.
• All sllated cover control systems sold by CF group, Wi-Key, key box, and LivePool Cover.

* Only the side opposite the roller will be equipped with the Pushlock automatic system. ** For polycarbonate solar crystal, blue crystal, green crystal, and brown crystal slats, the reinforced slat will be an absolute black solar polycarbonate slat.

OPTIMIZED DISTANCE BETWEEN EACH DEVICE

The distance between each Pushlock automatic is optimized compared to the manual hooking kit. A maximum of 90 cm from the pool edge and a maximum of 3.24 meters between each kit. For example, for a 4.50-meter pool, 2 Pushlock automatic devices will be needed, compared to 3 for the manual hooking kits.

To comply with the NF P90-308 safety standard, the number and positioning of the hooking kits must follow our recommendations present in the manuals and/or those on the detailed plan provided during the delivery of your cover.
