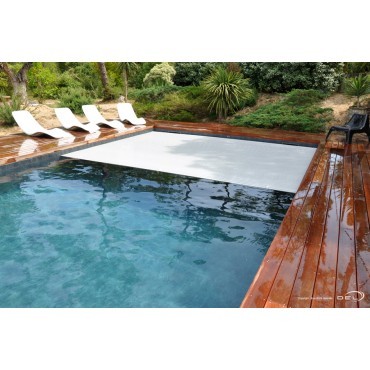

Rollinside in-ground automatic slatted cover
Rollinside in-ground automatic slatted cover
Rollinside in-ground automatic slatted cover
- 1 side : Max. 10.00 m wide
- 2 sides : Max. 6.00 m wide
- Motorisation : submerged tubular to be sealed, submerged tubular in front, dry box
To get a price
and place an order,
Click here for more detail
09 70 72 5000
From monday to friday 08:00 am- 6:00 pm See the peak times
Product Bonuses
THE PRODUCT BONUSES
- Rolling pit frees up the entire water surface.
- Aesthetic and discreet.
- Can be installed on any type of structure.
TYPE OF POOL
For pools up to 10.00 m wide (1 side version) and 6.00 m wide (2 side version with flat bottom at the pit level).
ADAPTABLE TO DIFFERENT CONFIGURATIONS
The Rollinside concept comes in 2 versions:
4 MOTOR POWERS: 120 Nm, 250 Nm, 500 Nm AND 750 Nm
- Quality for flexible, robust power cables.
- Stronger, lightning-resistant end-of-runs sensors*.
- Simplified end-of-runs sensor wiring: reversible wires (no polarity)*. * For 120 and 250 Nm motors only.
INFO
- LINER ADAPTER KIT
Recommended if the pool is fitted with a liner (pool with straight corners only). The kit is used to press the liner against the corners and avoids rubbing with the slats. Incompatible with masonry radius.
TYPE OF POOL
For pools up to 10.00 m wide (1 side version) and 6.00 m wide (2 side version with flat bottom at the pit level).
ADAPTABLE TO DIFFERENT CONFIGURATIONS
The Rollinside concept comes in 2 versions:
4 MOTOR POWERS: 120 Nm, 250 Nm, 500 Nm AND 750 Nm
- Quality for flexible, robust power cables.
- Stronger, lightning-resistant end-of-runs sensors*.
- Simplified end-of-runs sensor wiring: reversible wires (no polarity)*. * For 120 and 250 Nm motors only.
INFO
- LINER ADAPTER KIT
Recommended if the pool is fitted with a liner (pool with straight corners only). The kit is used to press the liner against the corners and avoids rubbing with the slats. Incompatible with masonry radius.
Documents to download
- Order form Rollinside
- Order form Securiwall
- Order form Slat
- Product leaflet Rollinside
- Technical leaflet Rollinside Dry Box Version
- Warranty automatic slatted covers and slats 2024
- Technical leaflet Rollinside sealed tube version
- Technical leaflet Rollinside tube facade pegged version
Technical specifications
1-MOTORISATION
- 3 motorisations and fixings available:
- Motor in a dry pit - insert mount fixing.
- Tubular motor - surface mount fixing.
- Tubular motor - insert mount fixing (the wall units are available for concrete and polystyrene block construction / sheet metal construction, / mixed wall construction and shells).
- The power is determined depending on the pool dimensions and the depth at which the Rollinside is installed: 120, 250, 500 or 750 Nm.
- Automatic stops.
- Controlled by Wi-Key, key switch or LivePool (option).
- Opaque PVC 84 slats.
- Opaque PVC 69 slats.
- Solar polycarbonate slats.
- Pushlock automatic (Rollinside with a water level / grate dimension between 8 and 13 cm)
- Pushlock
- Two types of cladding: 1-sided and 2-sided.
- 4 types of cladding grids, delivered ready to install and equipped with fixation devices:
- For any other cladding, please consult our technical service for a feasibility study.
- Pool with radius < 5 cm: 7 cm opening.
- Pool with radius from 5 cm to 15 cm: 5 cm opening (with the option profile for rounded corners).
- Dimension : 150 mm x 100 mm.
- 1 side version: 1 or 2 beams in the upper part.
- 2 side version: 3 beams of which 2 in the upper part and 1 in the lower part to keep the decking vertical.
- For motors with electronic end stops:
- For motors with mechanical end stops:
- Available automation features:
- Order form Rollinside
- Order form Securiwall
- Order form Slat
- Product leaflet Rollinside
- Technical leaflet Rollinside Dry Box Version
- Warranty automatic slatted covers and slats 2024
- Technical leaflet Rollinside sealed tube version
- Technical leaflet Rollinside tube facade pegged version
2-SLATS
3-HOOKING KITS
4-CHOICE OF FINISH:
- Ceramic stone grid - 8 available colors (1-sided only).
- PVC grid to be covered with reinforced membrane by your care.
- PVC grid - 3 available colors.
- Aluminum grid to be tiled (1-sided only).
5-OPENING
6-ANODISED ALUMINIUM BEAMS
7-20 MICRON ANODISED ALUMINIUM TUBE
8-ELECTRICAL BOX
- External wall mounting kit for the control box, facilitating installation.
- Tropicalized electronic boards for enhanced durability.
- Pluggable terminals to simplify electrical connections (excluding motor and mains power connectors).
- Durable and repairable electromechanical control box, with numerous spare parts available.
- Resettable electrical protections.
- Integrated automatic switch: Stops the opening when an abnormal force on the cover is detected.
- Stop/Go Flow: Stops or forces filtration to prevent disruptions caused by water circulation when operating the cover.
- Stop Salt: Informs the electrolyzer whether the cover is open or closed, allowing it to automatically adjust its production accordingly (for compatible electrolyzers).
