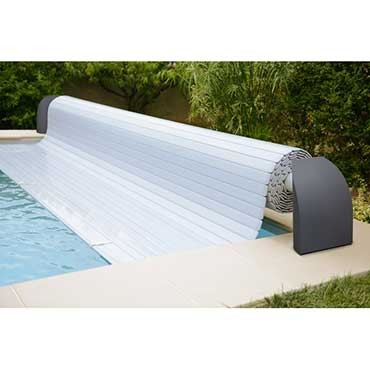

Contura above-ground automatic slatted cover

Contura above-ground automatic slatted cover

Contura above-ground automatic slatted cover

  • CF-Group-product.png
  • norm-nf-p-90-308-safety.png
  • 3-year-warranty-motor.png
  • 2-year-warranty-roller.png
DEL
  • Max. pool length in m : 20.50
  • Max. pool width in m : 10.00
  • Power supply : electric or solar
A rush order? This product is eligible for the high-speed service
Click here for more detail
Need advice?
09 70 72 5000
From monday to friday 08:00 am- 6:00 pm See the peak times

Product Bonuses

  • Ideal for large sized pools.
  • Includes the advanced features of a modern above-ground cover.
  • Tube supported by bearing blocks to extend the life of the motor.
  • Adjustable feet.

TYPE OF POOL

For pools from 2.00 m x 3.00 m up to 10.00 m x 20.50 m.


AVAILABLE VERSIONS: ELECTRIC OR SOLAR

  • Save electricity and installation time (no cables to lay), choose the solar version for pools of up to 7.00 m x 11.00 m (supplied with 2 batteries and 1 solar panel with photovoltaic cells).

COMPATIBLE WITH POLYCARBONATE SLATS

  • Above-ground automatic slatted covers are compatible with solar polycarbonate slats.

INFO

  • Feel free to contact our technical department to adapt your CONTURA mechanics. Mixed installation available: standard end-stand on the motor side, and wall mounting on the free side.
Image Technical specifications

Technical specifications

1-END-STANDS

  • Available in electric or solar versions
  • Electric version:

      • - Axis height: 32 cm (for pools up to 5.00 m x 13.50 m).

      - Axis height: 42 cm (for pools up to 10.00 m x 20.50 m).

  • Solar version:

      • - Axis height: 32 cm (for pools up to 5.00 m x 11.00 m).

      - Axis height: 42 cm (for pools up to 7.00 m x 11.00 m).

  • Aluminum terminals:

      • - Metallic gray tinted.

      - Excellent resistance to impacts and scratches.

      - High durability against UV exposure.

  • Adjustable feet to level the terminals in case of curved coping stones.

    • 2-MOTORISATION

    • Electric version
    • Adjustable mechanical limit switches, removable without dismantling the roller, freewheeling motor (used to unroll the slats in case of a breakdown and to keep the pool safe despite the absence of electricity).
    • The lifetime of the motor is longer thanks to the bearings which support the tube and therefore the weight of the cover.
    • 12 V or 24 V tubular motor.
    • Electric control box with 200 VA transformer, protection by magnetic thermal circuit breaker (12 V) or fuse (24 V).
    • Solar version
    • The end-stand has one or three solar panels depending on the pool size.

    Controlled by Wi-Key, key switch or LivePool (Optional, not available for the solar version).

    3-LOCKING KITS (at the start and end of the automatic cover)

    • Pushlock
    • Quicklock
    • Straplocking

    4-SLATS

    • Opaque PVC 84 slats.
    • Opaque PVC 69 slats.
    • Solar polycarbonate slats.

    5-20 MICRON ANODISED ALUMINIUM TUBE

    Image Technical specifications

    Documents to download

    More documents

    Options

    STOP SALT CONTROL BOX (FOR THE ELECTRIC VERSI

    The Stop Salt control box is used to automatically send the “cover unrolled” or “cover rolled” data to the salt electrolysis unit.

    AUTOMATIC STOP

    A circuit board used to stop the opening if an abnormal strain is detected on the slats.
